AZ-104 – Question 267

0
106
Introductory Info
Case study –
This is a case study. Case studies are not timed separately. You can use as much exam time as you would like to complete each case. However, there may be additional case studies and sections on this exam. You must manage your time to ensure that you are able to complete all questions included on this exam in the time provided.
To answer the questions included in a case study, you will need to reference information that is provided in the case study. Case studies might contain exhibits and other resources that provide more information about the scenario that is described in the case study. Each question is independent of the other questions in this case study.
At the end of this case study, a review screen will appear. This screen allows you to review your answers and to make changes before you move to the next section of the exam. After you begin a new section, you cannot return to this section.

To start the case study –
To display the first question in this case study, click the Next button. Use the buttons in the left pane to explore the content of the case study before you answer the questions. Clicking these buttons displays information such as business requirements, existing environment, and problem statements. If the case study has an
All Information tab, note that the information displayed is identical to the information displayed on the subsequent tabs. When you are ready to answer a question, click the Question button to return to the question.


Overview –
Litware, Inc. is a consulting company that has a main office in Montreal and two branch offices in Seattle and New York.
The Montreal office has 2,000 employees. The Seattle office has 1,000 employees. The New York office has 200 employees.
All the resources used by Litware are hosted on-premises.
Litware creates a new Azure subscription. The Azure Active Directory (Azure AD) tenant uses a domain named litware.onmicrosoft.com. The tenant uses the
Premium P1 pricing tier.

Existing Environment –
The network contains an Active Directory forest named litware.com. All domain controllers are configured as DNS servers and host the litware.com DNS zone.
Litware has finance, human resources, sales, research, and information technology departments. Each department has an organizational unit (OU) that contains all the accounts of that respective department. All the user accounts have the department attribute set to their respective department. New users are added frequently.
Litware.com contains a user named User1.
All the offices connect by using private connections.
Litware has data centers in the Montreal and Seattle offices. Each office has a firewall that can be configured as a VPN device.
All infrastructure servers are virtualized. The virtualization environment contains the servers in the following table.

Litware uses two web applications named App1 and App2. Each instance on each web application requires 1 GB of memory.
The Azure subscription contains the resources in the following table.

The network security team implements several network security groups (NSGs)

Requirements –
Planned Changes –
Litware plans to implement the following changes:

  • Deploy Azure ExpressRoute to the Montreal office.
  • Migrate the virtual machines hosted on Server1 and Server2 to Azure.
  • Synchronize on-premises Active Directory to Azure Active Directory (Azure AD).
  • Migrate App1 and App2 to two Azure web apps named WebApp1 and WebApp2.


Technical Requirements –
Litware must meet the following technical requirements:

  • Ensure that WebApp1 can adjust the number of instances automatically based on the load and can scale up to five instances.
  • Ensure that VM3 can establish outbound connections over TCP port 8080 to the applications servers in the Montreal office.
  • Ensure that routing information is exchanged automatically between Azure and the routers in the Montreal office.
  • Enable Azure Multi-Factor Authentication (MFA) for the users in the finance department only.
  • Ensure that webapp2.azurewebsites.net can be accessed by using the name app2.litware.com.
  • Connect the New York office to VNet1 over the Internet by using an encrypted connection.
  • Create a workflow to send an email message when the settings of VM4 are modified.
  • Create a custom Azure role named Role1 that is based on the Reader role.
  • Minimize costs whenever possible.

Question 1.You discover that VM3 does NOT meet the technical requirements.
You need to verify whether the issue relates to the NSGs.
What should you use?

  • A. Diagram in VNet1
  • B. Diagnostic settings in Azure Monitor
  • C. Diagnose and solve problems in Traffic Manager profiles
  • D. The security recommendations in Azure Advisor
  • E. IP flow verify in Azure Network Watcher

Correct Answer: E
Scenario: Contoso must meet technical requirements including:
Ensure that VM3 can establish outbound connections over TCP port 8080 to the applications servers in the Montreal office.
IP flow verify checks if a packet is allowed or denied to or from a virtual machine. The information consists of direction, protocol, local IP, remote IP, local port, and remote port. If the packet is denied by a security group, the name of the rule that denied the packet is returned. While any source or destination IP can be chosen,
IP flow verify helps administrators quickly diagnose connectivity issues from or to the internet and from or to the on-premises environment.

Reference:
https://docs.microsoft.com/en-us/azure/network-watcher/network-watcher-ip-flow-verify-overview

Question 2.You need to ensure that VM1 can communicate with VM4. The solution must minimize the administrative effort.
What should you do?

  • A. Create an NSG and associate the NSG to VM1 and VM4.
  • B. Establish peering between VNET1 and VNET3.
  • C. Assign VM4 an IP address of 10.0.1.5/24.
  • D. Create a user-defined route from VNET1 to VNET3.

Correct Answer: C
Reference: https://docs.microsoft.com/en-us/azure/vpn-gateway/tutorial-site-to-site-portal

Question 3.HOTSPOT –
You need to meet the connection requirements for the New York office.
What should you do? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

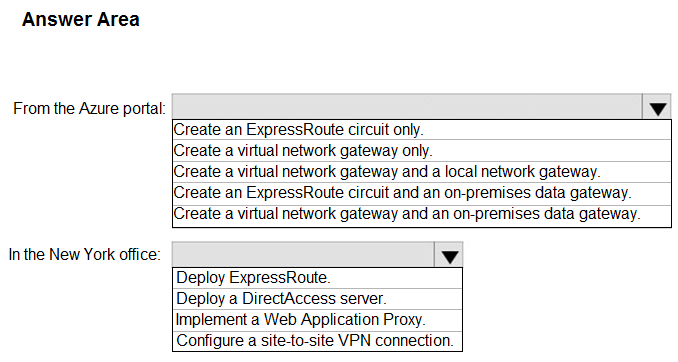

Hot Area:

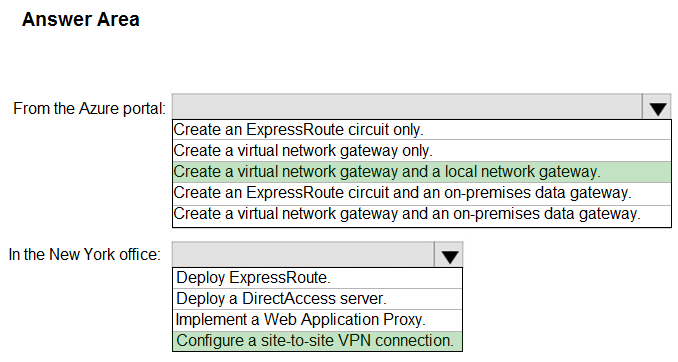

Correct Answer:

Box 1: Create a virtual network gateway and a local network gateway.
Azure VPN gateway. The VPN gateway service enables you to connect the VNet to the on-premises network through a VPN appliance. For more information, see
Connect an on-premises network to a Microsoft Azure virtual network. The VPN gateway includes the following elements:
✑ Virtual network gateway. A resource that provides a virtual VPN appliance for the VNet. It is responsible for routing traffic from the on-premises network to the
VNet.
✑ Local network gateway. An abstraction of the on-premises VPN appliance. Network traffic from the cloud application to the on-premises network is routed through this gateway.
✑ Connection. The connection has properties that specify the connection type (IPSec) and the key shared with the on-premises VPN appliance to encrypt traffic.
✑ Gateway subnet. The virtual network gateway is held in its own subnet, which is subject to various requirements, described in the Recommendations section below.
Box 2: Configure a site-to-site VPN connection
On premises create a site-to-site connection for the virtual network gateway and the local network gateway.

Scenario: Connect the New York office to VNet1 over the Internet by using an encrypted connection.
Incorrect Answers:
Azure ExpressRoute: Established between your network and Azure, through an ExpressRoute partner. This connection is private. Traffic does not go over the internet.
Reference:
https://docs.microsoft.com/en-us/azure/architecture/reference-architectures/hybrid-networking/vpn

Question 4.HOTSPOT –
You need to implement Role1.
Which command should you run before you create Role1? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

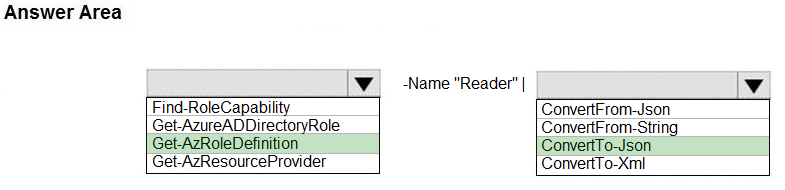

Hot Area:

Correct Answer:


Question 5.

You need to recommend a solution to automate the configuration for the finance department users. The solution must meet the technical requirements.
What should you include in the recommendation?

  • A. Azure AD B2C
  • B. dynamic groups and conditional access policies
  • C. Azure AD Identity Protection
  • D. an Azure logic app and the Microsoft Identity Management (MIM) client

Correct Answer: B
Scenario: Ensure Azure Multi-Factor Authentication (MFA) for the users in the finance department only.
The recommendation is to use conditional access policies that can then be targeted to groups of users, specific applications, or other conditions.

Reference:
https://docs.microsoft.com/en-us/azure/active-directory/authentication/howto-mfa-userstates
