AZ-204 – Question 121


You are developing an Azure solution to collect inventory data from thousands of stores located around the world. Each store location will send the inventory data hourly to an Azure Blob storage account for processing.
The solution must meet the following requirements:
✑ Begin processing when data is saved to Azure Blob storage.
✑ Filter data based on store location information.
✑ Trigger an Azure Logic App to process the data for output to Azure Cosmos DB.
✑ Enable high availability and geographic distribution.
✑ Allow 24-hours for retries.
✑ Implement an exponential back off data processing.
You need to configure the solution.
What should you implement? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

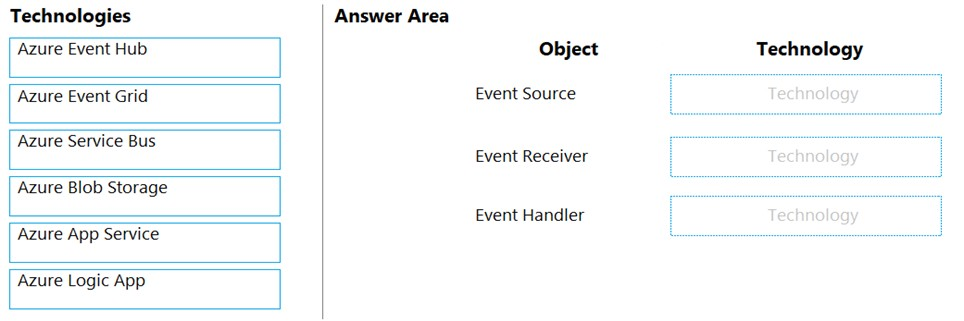

Select and Place:

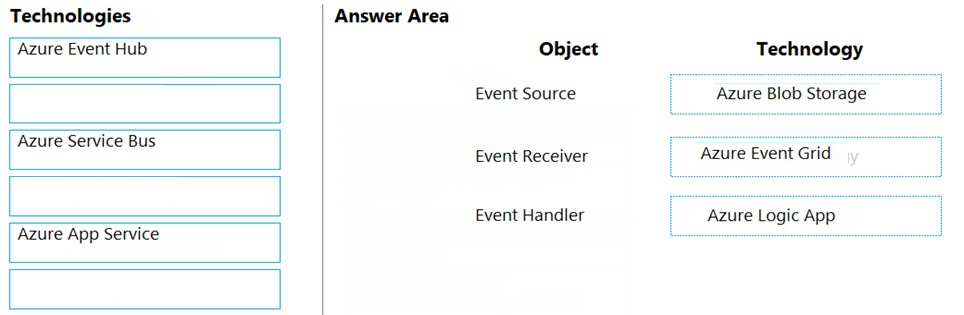

Correct Answer:

Box 1: Azure Blob Storage
Blob storage events are pushed using Azure Event Grid to subscribers such as Azure Functions, Azure Logic Apps, or even to your own http listener. Event Grid provides reliable event delivery to your applications through rich retry policies and dead-lettering.

Box 2: Azure Event Grid –
Event Grid uses event subscriptions to route event messages to subscribers. This image illustrates the relationship between event publishers, event subscriptions, and event handlers.

Box 3: Azure Logic App –
The Event Grid service doesn’t store events. Instead, events are stored in the Event Handlers, including ServiceBus, EventHubs, Storage Queue, WebHook endpoint, or many other supported Azure Services.
