HOTSPOT –

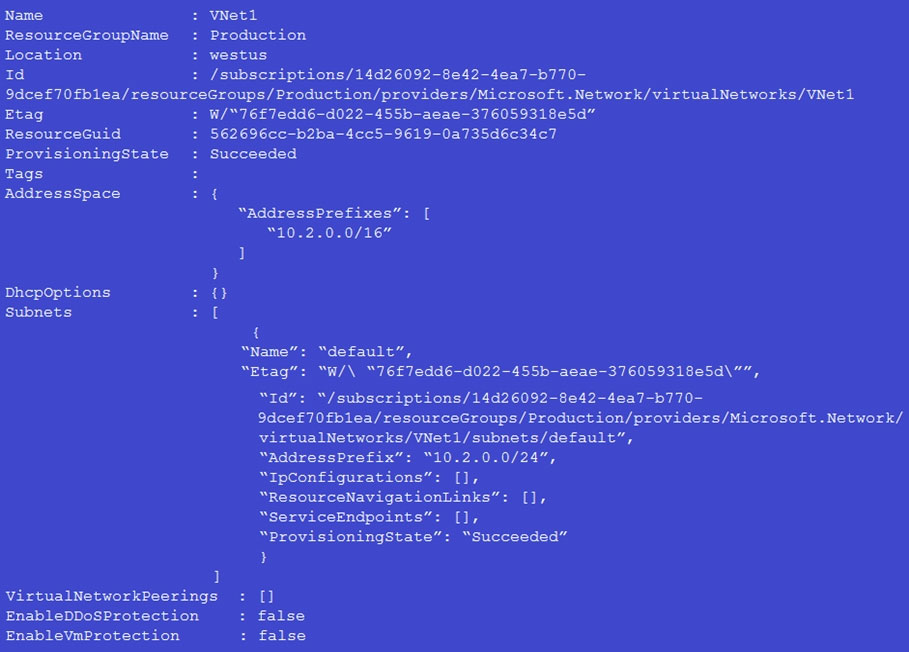

You have a virtual network named VNet1 that has the configuration shown in the following exhibit.

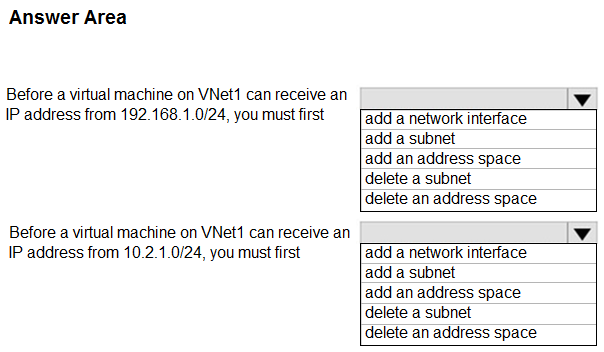

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:
Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.
Hot Area:
Correct Answer:
Box 1: add an address space –
Your IaaS virtual machines (VMs) and PaaS role instances in a virtual network automatically receive a private IP address from a range that you specify, based on the address space of the subnet they are connected to. We need to add the 192.168.1.0/24 address space.
Box 2: add a subnet –
The 10.2.1.0/24 network exists. We need to add a network interface.
Reference: https://docs.microsoft.com/en-us/office365/enterprise/designing-networking-for-microsoft-azure-iaas
