HOTSPOT –
You have an Azure subscription that contains the Azure virtual machines shown in the following table.
You add inbound security rules to a network security group (NSG) named NSG1 as shown in the following table.

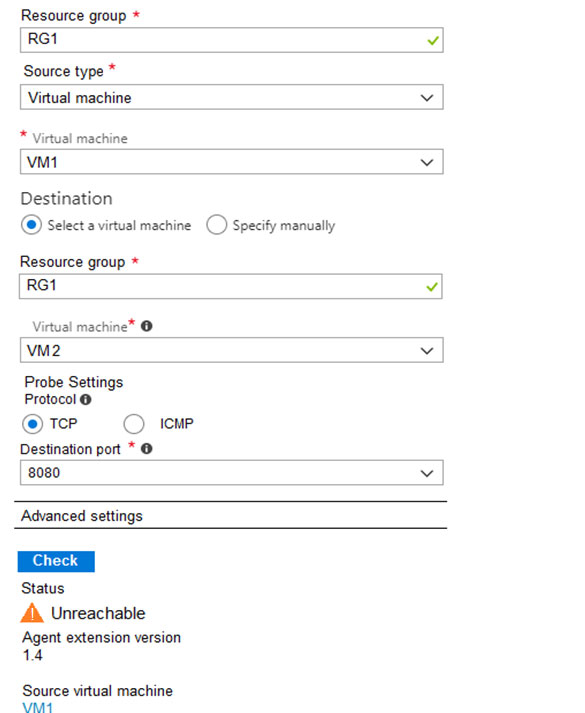

You run Azure Network Watcher as shown in the following exhibit.
You run Network Watcher again as shown in the following exhibit.

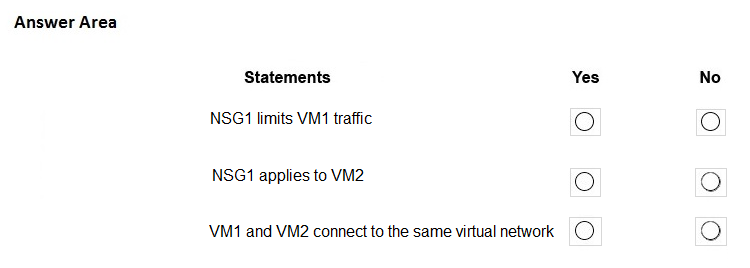

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:
You add inbound security rules to a network security group (NSG) named NSG1 as shown in the following table.
You run Azure Network Watcher as shown in the following exhibit.
You run Network Watcher again as shown in the following exhibit.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Hot Area:
Correct Answer:
Box 1: No –
NSG1 limits the traffic that is flowing into 172.16.2.0/24 (Subnet2), which host VM2.
Box 2: Yes –
Since Network Watcher is showing that traffic from VM1 to VM2 is not reaching on the TCP port, that means that NSG1 is applied to VM2. We can understand for sure, that it is not applied to VM1.
Box 3: Yes –
In Network Watcher, you can see that the next hop is the destination VM2. This means that they are part of the same virtual network.
Reference: https://docs.microsoft.com/en-us/azure/virtual-network/network-security-group-how-it-works
