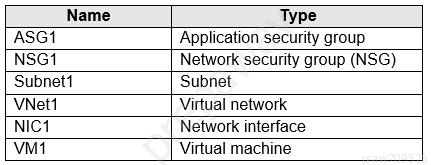

Subnet1 is associated to VNet1. NIC1 attaches VM1 to Subnet1.
You need to apply ASG1 to VM1.
What should you do?
- A. Associate NIC1 to ASG1
- B. Modify the properties of ASG1
- C. Modify the properties of NSG1
Correct Answer: A
Application Security Group can be associated with NICs.
References: https://docs.microsoft.com/en-us/azure/virtual-network/security-overview#application-security-group
Associate Virtual Machines
An application security group is a logical collection of virtual machines (NICs). You join virtual machines to the application security group, and then use the application security group as a source or destination in NSG rules.
The Networking blade of virtual machine properties has a new button called Configure The Application Security Groups for each NIC in the virtual machine. If you click this button, a pop-up blade will appear and you can select which (none, one, many) application security groups that this NIC should join, and then click Save to commit the change.
